Upper fuser roller for Samsung ProXpress M3320 M3370 M3820 M3825 M3870 M4020 M4070 M4072 M4080 Printer Parts

製品詳細

起源の場所: 韓国

ブランド名: Samsung

証明: CE, ISO9001

モデル番号: ProXpress M3320 M3370 M3820 M3825 M3870 M4020 M4070 M4072 M4080

支払いと送料の条件

最小注文数量: 10

パッケージの詳細: オリジナルの梱包

受渡し時間: 5~10営業日

支払条件: T/T、ウェスタンユニオン

供給の能力: 5000ピース/月

お問い合わせ
ハイライト:
特徴:
オリジナル
品質:
トップ
配送:
Air/by Sea/by Express
色:
オリジナルカラー
特徴:
オリジナル
品質:
トップ
配送:
Air/by Sea/by Express
色:
オリジナルカラー

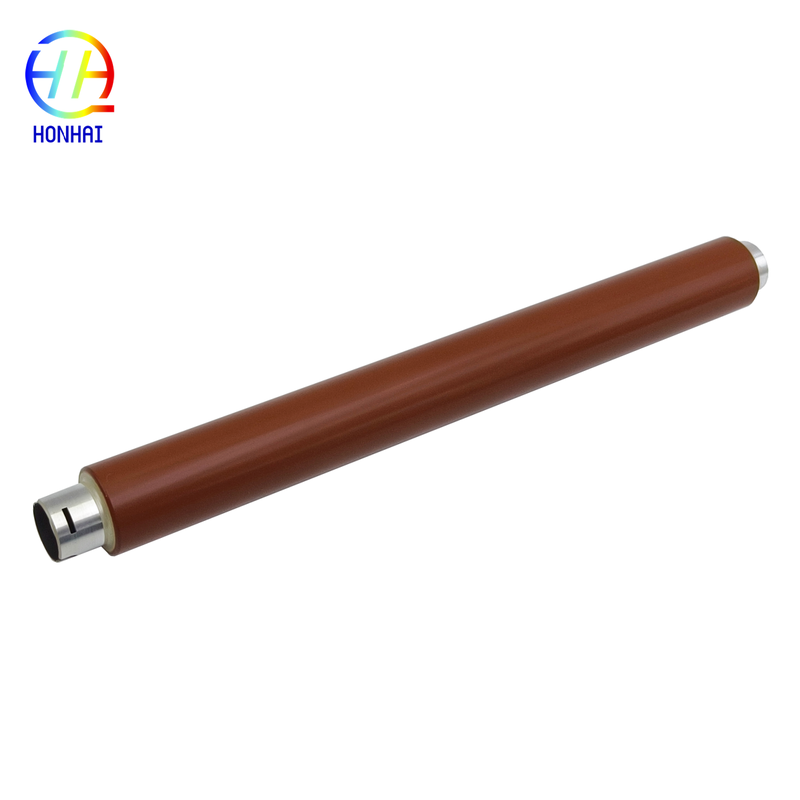

Upper fuser roller for Samsung ProXpress M3320 M3370 M3820 M3825 M3870 M4020 M4070 M4072 M4080 Printer Parts
Description:

The Samsung ProXpress M3320, M3370, M3820, M3825, M3870, M4020, M4070, M4072, and M4080 Printer Fuser Unit has an important part known as the Upper Fuser Roller. Its job is to hold heat from the internal halogen lamp and transfer it to the print media. The Upper Fuser Roller works with the Pressure Roller that uses silicon resin. These rollers apply the correct amount of heat and pressure to the paper to permanently bond the toner to it, completing the print job.

Teflon is used to coat the Upper Fuser Roller. The coating prevents toner from adhering to the upper fuser roller when it is hot. The Fuser Unit is equipped with safety and temperature-detecting sensors that include a thermostat, which turns off power in case of overheating, and a thermistor, which measures the exact temperature.


Product Parameters:
  • Product Type: Upper Fuser Roller / Heat Roller
  • Compatible Printer Models: Samsung ProXpress M3320, M3370, M3820, M3825, M3870, M4020, M4070, M4072, M4080
  • Core Components: Halogen Lamp, Thermistor, Thermostat
  • Material & Coating: Surface coated with Teflon to prevent toner from sticking
  • Thermostat Type: Non-Contact type
  • Control Temperature: 190°C ± 5°C / 195°C ± 5°C (depending on specific model series)
  • Thermistor Resistance: 7 kΩ (at 180°C)
  • Halogen Lamp Voltage: 120 V (115 ± 5%) / 220 V (230 ± 5%)
  • Halogen Lamp Capacity: 850 Watt ± 25W / ± 42.5W

Photos:
